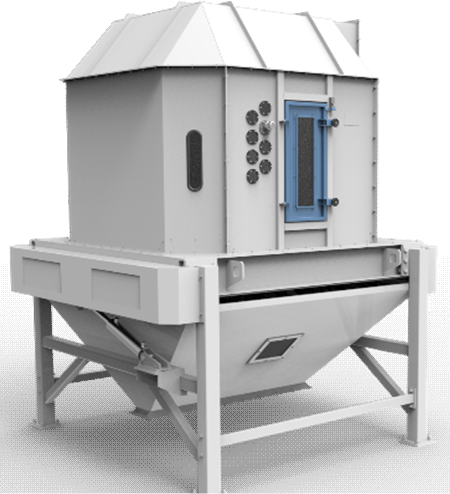

Description:

Density: 0.65 Kg/dm3

Product T° at inlet: 85 °C

Product T° at outlet: 5 to 10 °C / T° ambient

Technical characteristics:

Lock power: 0.55 kW

Levelling system power 1.5 kW

Atex zoning: outside zone

Control voltage 24 Volts DC (as standard)

Inductive sensor voltage 24 volts DC

Cooling sections : Around 5.76 m2

Dimension : 2.4 m x 2.4 m

Heap of materials : 1.00 m

Hourly Capacity : 20 tons of pellets dia. 3.2 mm

INTEGRAL FILTER UNITS TYPE CFPD 10/20/40m2

Functional characteristics:
Pneumatic unclogging
Nominal air capacity: 22,500 m³/h
Maximal depressure: 550 mm WC
on air temperature: 45° C
with maximal moisture: 75%
Filtering speed: 240 m³/m²/h
Pads quantity: 20
Average weight per m²: 500
Raw material: polyester felt with antistatic additional treatment, by stainless steel wires oil and water resistant

Technical characteristics:

• Metallic head casing steel
• 1 sequencer box 10 ways, 115/230 V, IP65, with built-in solenoid valves.
• 10 pneumovalves 3/4”.
• 20 pads width 1500 mm.
• 20 sleeve support stainless steel.
  Power supply to forecast:
• 115/230 V mono on sequencer and 16.86 Nm³h dry and de-oiled compressed air diameter 15/21 mini, at 6 bars.
  Finish:
• Made with Stainless steel.

KIT FOR FILTER HEADS HEATING WITHOUT INSULATION

DISCHARGE HOPPER PLUS SUPPORT

Emptying hopper
Mild steel, painted, thickness 3mm with stiffeners
To be designed according to the reclaiming mean
1 steel support made of irons

MOTORIZED AIR FLAP

Diameter 650 mm – Mild Steel (Option: Stainless Steel)
To adjust automatically the air flow or to close it.
With gear-motor 0.18 kW and 3 limit switches.

CENTRIFUGAL FAN

With vertical turbine.
Casing with inspection door, ball-bearing blocks, collective frame for ventilator and motor
Hourly output: 27,500 m3/h.
Total pressure: 540 mm WC.
Electric cage motor – Power 30 kW at 60Hz.
Voltage: 400/660 volts – IP 55 – tropicalized

SILENCER

At the exhaust of the fan

SET OF AIR PIPING – GALVANIZED
