HAMMER MILL

Multimills are small circle grinders, equipped with two pole motors for high speed fine grinding
applications such as the extrusion of pet food and aqua feed.
The raw materials are ground in a hammer mill type MultiMill. The mill is filled by means of a
mill feeder. The speed is regulated according to the load of the mill.
The mill is equipped with a separator with a permanent magnet, which removes magnetic
metallic impurities as well as other heavy impurities before the raw material is sucked into
the milling chamber.
The mill is designed for fine milling of aquatic feeds.
Technical Information:
※ Model : SHM100
※ Capacity : 15TPH on 3.0mm screen, standard recipe, moisture<13%
※ Power : 380V, 50Hz
※ Bearing : SKF
※ Diameter of grinding rotor : 650mm
※ Rotating speed : 3000rpm
※ Hammers number’s : 152
※ Gap between hammer and scree : Adjustable
※ Hammer size : L175mm x W60mm
※ Hammer thickness : 6mm
※ Paint : Anti-corrosion surface treatment

Dust Collector

The filter is used for separation of dry dust in connection with industrial processes.
The filter is a fully automatic, continuous working, pulse bag filter. The filter is modular built
up with filter bags in different length. The filter bags are cleaned in rows by means of a powerful
compressed air jet, activated by means of an electronic controller with individual set points for
pause – and pulse time. The filter is for mounting on hoppers, silos, grinding hoppers etc.
It’s a free standing equipment. Depending on erection – and transport conditions the filter will be
delivered in sections or fully assembled from our works. On site clean and dry compressed air at
a pressure of 6-7 bar has to be connected, as well as the control box/solenoid valves has
to be electrical connected

Specifications:
※ Model : AFQV56/18
※ Number of filtering bags : 56
※ Filtering area : 44.80m²
※ Size of filtering bag : Ø145 x 1800mm
※ Filtering cloth material : Terylene needle felt
※ Cleaning method : Automatically air pulse
※ Number of Solenoid valves : 8
※ Air volume : 8100 m3/h
※ Air pressure for dust cleaning : 0.5Mpa-0.7Mpa
Consist of:
※Filtering head with solenoid valve, compressed air bags, and fan connection part
※ Filtering bags mounted on support frame
※ Rectangular Casing with inspection door
※ Pulse controller

High pressure fan

Air quantity: 8.961 m³/h by 15º C
Static pressure: 450mm H₂O (4500 Pa)
Consisting of:

• Frame and housing in mild steel painted.
• Self-cleaning impeller made of Corten steel.
• Flex connection on suction and pressure side.
• Counter flange on pressure side.
• Vibration damper.
• Direct coupled main motor 7.5 kW, 2-poled.

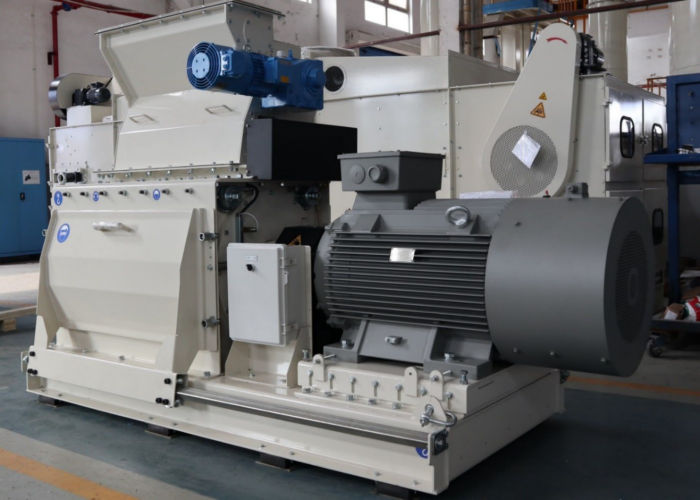

HAMMER MILL
Features:

1.U-shaped step grinding structure

2.Dynamic balanced rotor with well distributed hammers

3.Forward and reverse rotating rotor

4.Tungsten carbide strengthened hammer

5.Adjustable screen- hammer gap

6.High quality bearings

7.Full-open sliding access door

Consist of:

1.Hammer mill machne body

2.Dynamic balance tested rotor

3.Two pieces screen,  tungsten carbide strengthened hammers

4.Screen pressing and fastening devices

5.Sliding access door

6.Main motor and drive device

Technical parameters:

1.Capacity:

Note-Bbased on grinding for flour corn with 13% humidity by 1.5mm screen ,the final performance data depend upon detailed product specifications

2.Anti-corrosion surface treatment:         Painted

3.Main material :             Carbon steel

4.Rotor diameter:            650mm

5.Rotor speed:   1000rpm

6.Hammer tip linear velocity:      103m/s(50Hz),123.6m/s(60Hz)

7.Hammer material:        Edge strengthened by tungsten carbide

8.Machine dimension :   3215x1340x1490mm

9.Machine weight :         3826Kg

Production Configuration:

1.Hammers quantity:      160 pcs, 8 groups;

2.Sieve hole dia:               D6;

3.Temperature display type:        Connect to temperature transmitter and PLC;

4.Voltage/Frequency:      380V/50Hz;

5.Vibration detection configuration:        With PLC output vibration meter ;

6.Motor brand:  Siemens ;

7.Motor power: 250kw;

PULSE JET DUST COLLECTOR       1

Model:  LNGM72

Technical parameters:

1.Anti-corrosion surface treatment :        Painted

2.Main material :             Carbon steel

3.Number of filtering bags :         96

4.Filtering area :               72m2

5.Size of filtering bag :    Ø120x2000mm

6.Cleaning method :       Automatically air pulse

7.Air volume :    8640～17280 m3/h

8.Air consumption for dust cleaning :      0.3-1.3m3/min

9.Air pressure for dust cleaning :               0.5-0.7Mpa

Production Configuration:

1.Pressure differencial meter:     Equipped pressure meter with PLC output (analog signal ) ;

2.Filter material:              Polyester needle felt;

3.Input / Output voltage:             AC220V/DC24V;

4.Voltage/Frequency:      380V/50Hz;

ELECTRIC BUTTERFLY VALVE        1

DN600

Diameter :600mm

Output 4~20mA signal

CENTRIFUGAL FAN           1             37.00     37.00

Model:  SFJ260-4.8A-37kW

Technical parameters:

1.Power:              37kw

2.Air volume:      15600m3/h

3.Air pressure:    4800Pa

4.Main material:              Carbon steel

MUFFLER             1

Technical parameters:

1.Inlet dia:          Φ700mm

2.Drum dia:        Φ845mm

3.H:        2200mm

4.Main material:              Carbon steel;
