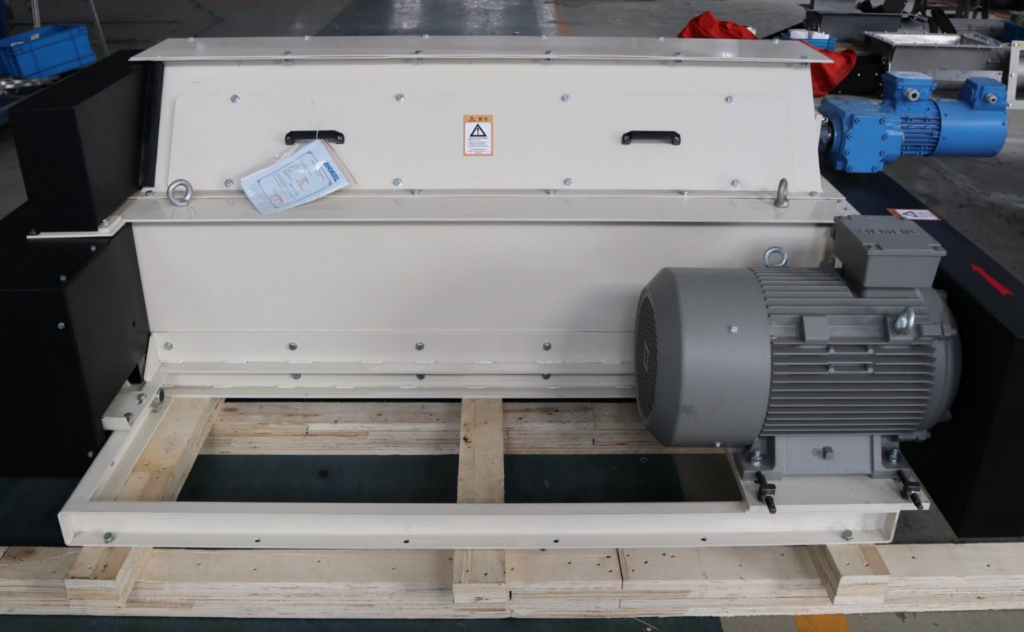

CRUMBLER
Model: MUSL30×180
Technical parameters:
1.Anti-corrosion surface treatment: Painted
2.Main material: Carbon steel
3.Diameter of fast and slow rollers: 300×1800mm
4.Speed of feeding roller: 0-65 rpm
5.Speed of slow roller: 480 rpm
6.Speed of fast roller: 720 rpm
7.Capacity: 3-28 t/h
8.Power: 22kw for crush rollers
1.5kw V.F.D. Gearmotor for feeder roller
Production Configuration:
1.Motor brand: Siemens ;
2.Bearing brand: SKF;
3.Control voltage: DC24V;
4.Motor reducer brand: SEW;
5.Motor power: 22kw;
6.Gear motor power: 1.5kW;
7.Voltage/Frequency: 380V/50Hz;
8.Energy efficiency grade : IE3;
Crumbler
Distribution roller type GFKR 121, complete, built into by-pass, consisting of
- Housing with flange bearings for roller. Roller with 6 chambers.
- By-pass provided with pneumatic cylinder and 2 pcs. Micro switches for position indication.
- 1/8″ solenoid valve.
- Gear motor 0.75 kW
ABB Frequency converter; 0.75 kW – IP Class IP20
Specifications:
※ Model : GRM121
※ Capacity : 10 – 20TPH
※ Power : 380V, 50Hz
※ Motor : 30kW, 4-pole IE3
※ Bearing : Andritz Standard bearing
※ Diameter of fast & slow rollers : Ø300 × 1200
※ V-belt bet motor and roller : 2pcs
※ Paint : Anti-corrosion surface treatment
※ Speed guard : Yes
※ Roller gap adjustment system : Yes
※ Overload device with spiral spring : Yes
Features:
※ Adopted the Twin- three-roller structure, added a feeding roller, the crumbler works
under continuous and symmetrical state.
※ The pellet size of the finished products are more even;
※ Adjustable roller gap can produced crumbled size from 0.5 – 3.0mm with maximum 5% fines
※ Come with internal by-pass flap with indicator and 2x sampling pot.
