Machine in Factory

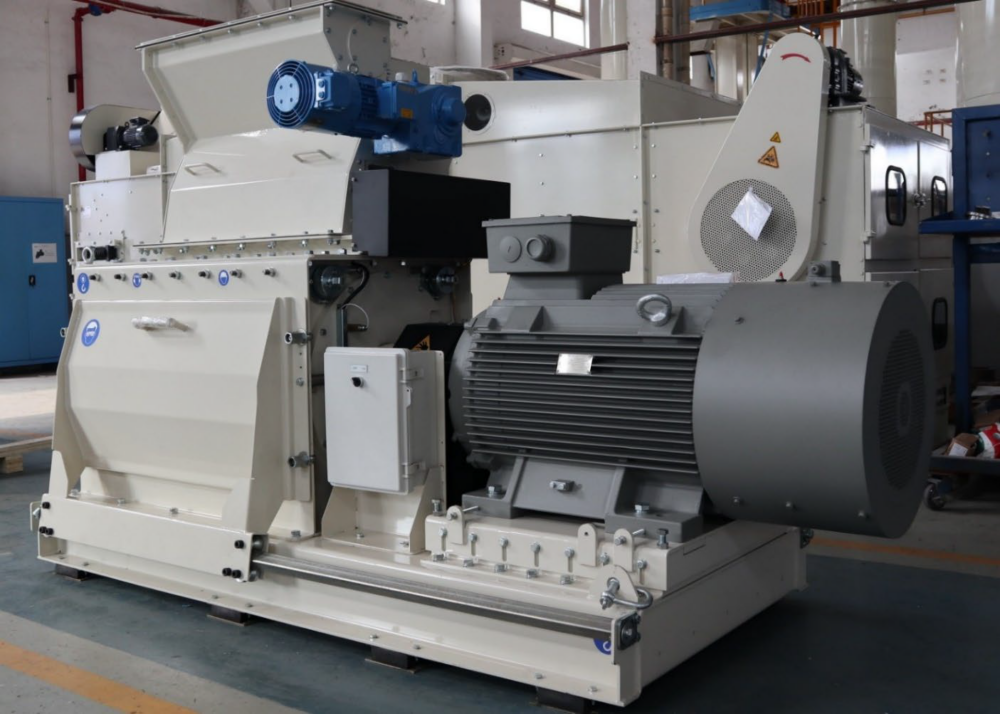

HAMMER MILL
DESCRIPTION
- Hammer Mill Model : SHM100
- CAPACITY : 15TPH on 3.0mm screen, standard recipe, moisture<13%
- Power : 380V, 50Hz
- Diameter of grinding rotor : 650mm
- Rotating speed : 3000rpm
- Hammers number’s : 152

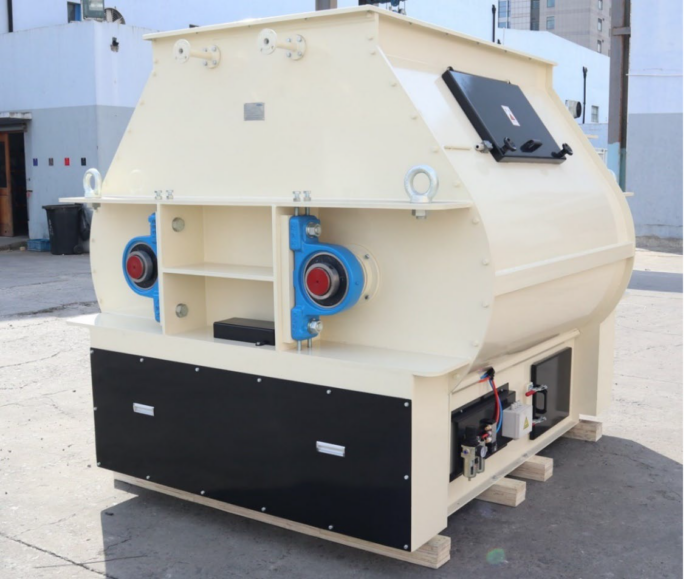

MIXER
DESCRIPTION
- OptiMix 2000 horizontal paddle mixer with mixing chamber in mild steel.
- Mixing ratio: 1:100,000
- Capacity per batch: 500-2.000 liters
- Density: 600 kg/m³
- Driving station
- Consisting of:
- Gear unit with 22 kW, 4-poled motor.
- Nozzle pipe without heating for liquid addition.
- Fat max. 5% or molasses max. 2%, respectively.
- Supplied with:
- 3 Pcs. spraying nozzles.
- Cover plate.
Max. 4 nozzle pipes on each side of the mixer.

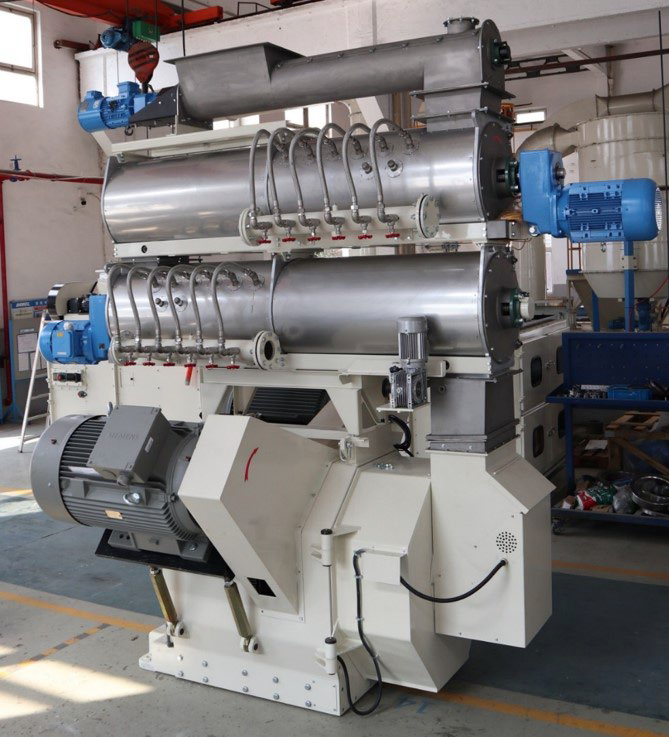

PELLET MILL
DESCRIPTION
- Technical parameters
- Ring die : Alloy steel
Hole diameter : Ø4 mm
Compress rate (L/D) : 13:1
Die internal diameter : Ø600 mm
Effective working width : 190mm - Roller : Alloy steel
- Roller shell surface shape : corrugated open ends
- Cutter : Alloy steel
- Drive mode : Gear motor type
- Capacity : Approx.16t/h
Based on general poultry feed formula, Ø4mm L/D=13:1
The final performance data depend upon detailed product specifications.
Drive : 200.00
Andritz /SIEMENS Motor

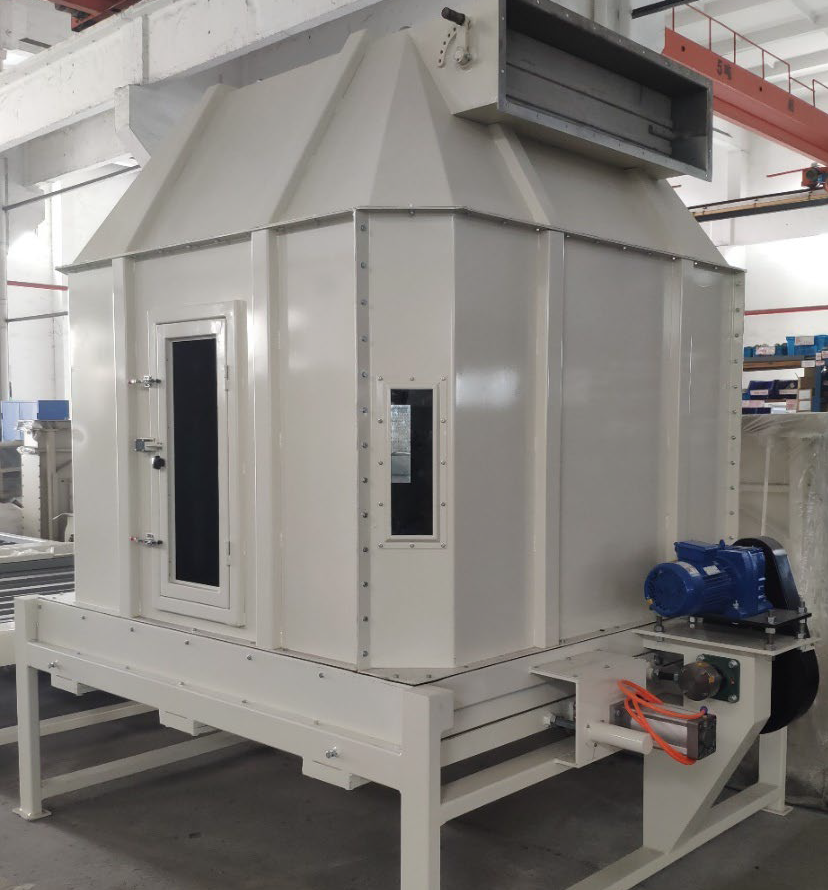

COOLER
DESCRIPTION
- Counterflow Cooler
- Model : SCCR20
- ※ Power : 380V, 50Hz
- ※ Capacity : 15-20T/H
- ※ Reciprocating frequency : 15 times/Minute
- ※ Reciprocating distance : 30mm
- ※ Cooling time : 10～15 minutes
- ※ Temperature after cooling : Ambient temp.+3～5oC）
- ※ Moisture reducing : ≥3%, with feed moisture ≤17%
- ※ Inlet with Air Lock (SS) : 1.1kW 1.10
- ※ Rotary discharge device : 0.75kW 0.75

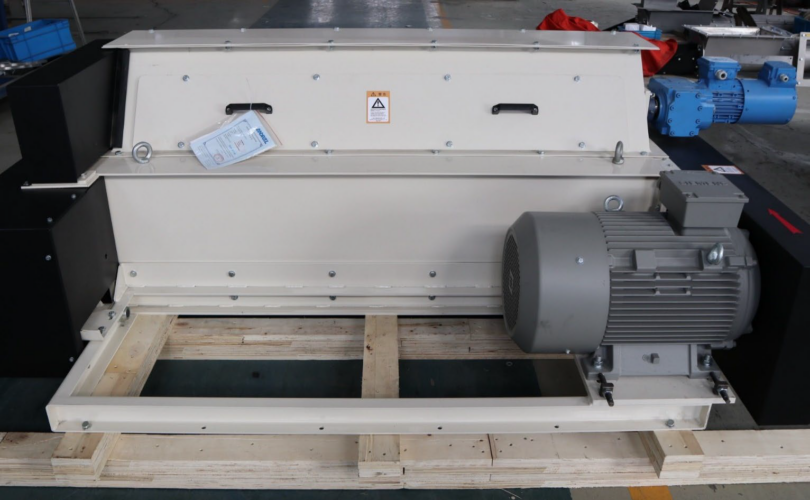

CRUMBLER
DESCRIPTION
- ※ Capacity : 10 – 20 TPH
- ※ Power : 380V, 50Hz
- ※ Motor : 30kW, 4-pole IE3
- ※ Bearing : Andritz Standard bearing
- ※ Diameter of fast & slow rollers : Ø300 × 1200
- ※ V-belt bet motor and roller : 2pcs

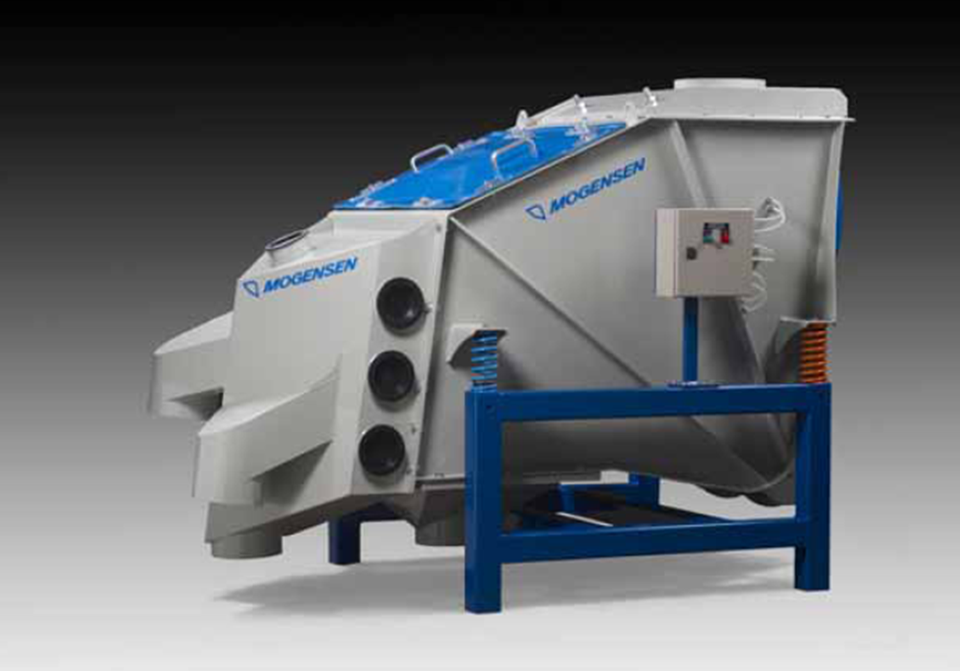

SIFTER
DESCRIPTION
- MOGENSEN MSIZER compact Type C1034
- ELECTRICAL DRIVE:
- 1 vibrator Invicta BLz 40-35/4, 400 V, 50 Hz, 1.8 kW, IP 66
Current: Full load 3.7 A / Starting 32 A (normal running condition 70% of Full load current)
SCREENING: – 3 screen cloths with EPDM rubber edging on mesh 6 mm and smaller - material outlets: +1 = overs, +2 = pellets/crumbles, +3 = crumbles and -3 = fines
MECHANICAL MESH CLEANING - deck +3 with nylon chains type 8
FEED CHUTE AND OUTLETS: as per drawing
SPREADER (built-in) with adjustable material distributor DUST ENCLOSURE:
