OptiMix 8000 horizontal paddle mixer with mixing chamber in mild steel.
Mixing ratio: 1:100,000
Capacity per batch: 2000-8.000 liters
Density: 600 kg/m³
Supplied with:

  • Paddles bolted on a steel shaft suspended with roller bearings at both ends.
  • Inspection/cleaning door at the end of the chamber for easy access for cleaning and servicing.
  • Inspection/cleaning doors at the inlet of the mixer for easy access to the liquid nozzles.
  • Discharge gate in the entire mixer length with pneumatic cylinder, solenoid valve and indicating switches.
  • Brackets for mounting on deck or on legs.
  • Torque arm for driving station.
  • 2 pcs. Zero speed sensors.
  • Wiring of all electrical components on the mixer to a connection box.
  • 15 Pcs. Cover plates.

Driving station
Consisting of:

  • Gear unit with 37 kW, 4-poled motor

Nozzle pipe without heating for liquid addition, for mounting in inlet section. Fat max. 5% or molasses max. 2%, respectively.
Supplied with:

  • 3 pcs. spraying nozzles.
  • Cover plate.
    Max. 4 nozzle pipes on each side of the mixer.

14″ x 24″ Rotary Feed Dresser. Designed for a capacity of 57 m³/h of dry mash feed, when using a 12.7 mm diameter perforated screen.
Consisting of:

  • Carbon steel construction.
  • Two (2) cylindrical perforated metal screens, approximately 356 mm diameter x 610 mm long x 4.8 mm thick.
  • Quick change chain screen holders provide fast access for inspection and adjustment of wiper blades.
  • Two (2) full length bolted dust tight circumferential access doors for easy access to interior screen area.
  • Agitator with three (3) adjustable pylon belting wipers with stainless steel leading edge wear plates. Each wiper assembly is supported by
    two spiders welded to the main shaft.
  • Two (2) anti-friction flange bearings bolted to end plates for supporting the agitator assembly.
  • V-belt drive, designed to fully absorb and guard the agitator shaft from shock. Drive assembly is designed to operate with an integrally
    mounted 5.5 KW motor on adjustable rails.
    Estimated weight: 430 kg.

NEMA Premium Efficiency WEG Motor, 7.5 HP / 1800 rpm, severe duty, 3ph / 60Hz / 208-230/460 V, TEFC Enclosure, 1.25 Service Factor,
Class F Insulation, 213T frame, rated Division 2 / Class II / Groups F & G / T3C, IP55 rating

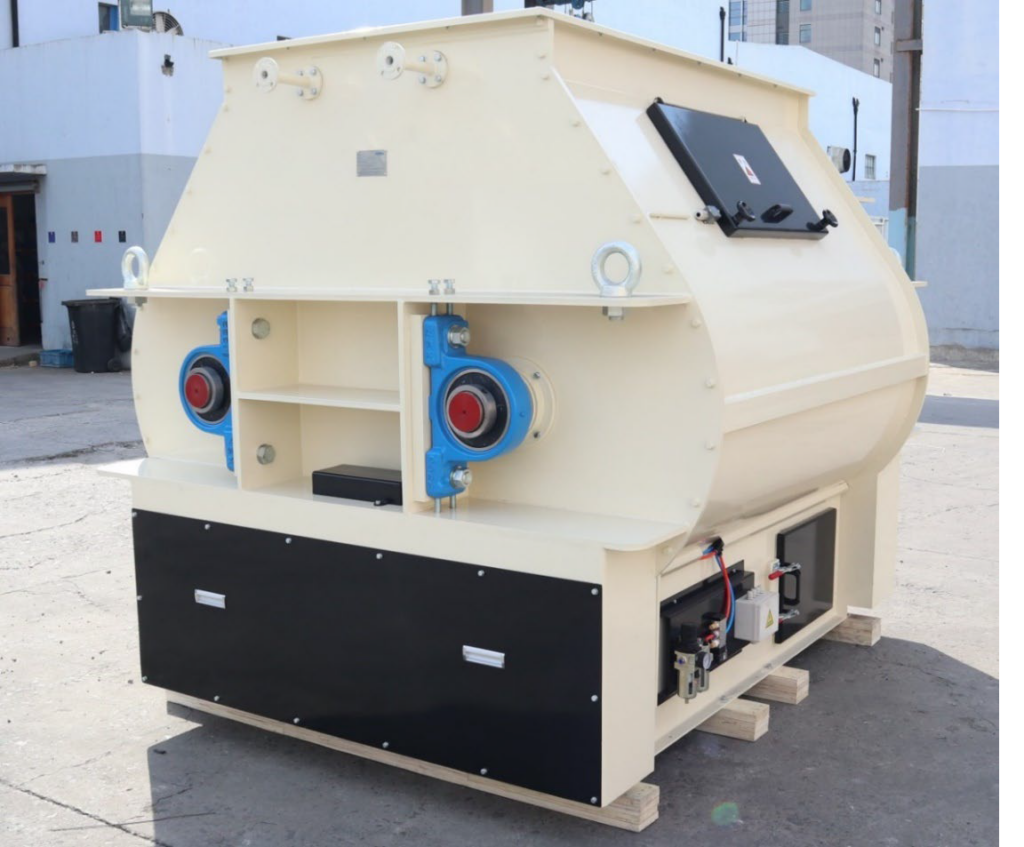

TWIN-SHAFT PADDLE MIXER

Features:
1. Layering and batching type mixer,two gear reducer direct driving
2. Double shaft rotor, each shaft with specially distributed branches and paddles,low mixing period and high efficiency
3. W type bottom structured design and full open discharging door, less residual
4. Packing sealing combined axial sealing, avoid leakage
5. Large inspection door,easily and fast maintain, low labor cost
Consist of:
1. Mixer Body
2. Two rotor shafts with branches and paddles
3. Discharging door and pneumatic component
4. Air balance tube and relief hat
5. Gearbox direct drive system
Technical parameters:
1. Effective volume : 8 m3
2. Capacity : 4000 Kg/batch
3. Mixing time : 45-60s
4. Anti-corrosion surface treatment : Painted
5. Main material : Carbon steel
6. Coefficient of Variation (CV) : 5%
7. Machine dimension : 3647x2893x2684mm
8. Machine weight : 9235Kg
Production Configuration:
1. Pneumatic component brand : SMC;
2. Adding amount of the first normal oil pipeline : 2%(standard) ;
3. Cleaning door type : Single cleaning door;
4. Air manifold configuration : With manifold;
5. Jet blowing pipeline configuration : With spray;
6. Control voltage : DC24V;
7. Voltage/Frequency : 380V/50Hz;
8. Bearing brand : FAG+SKF bearing;
9. Electric control type : Single coil;

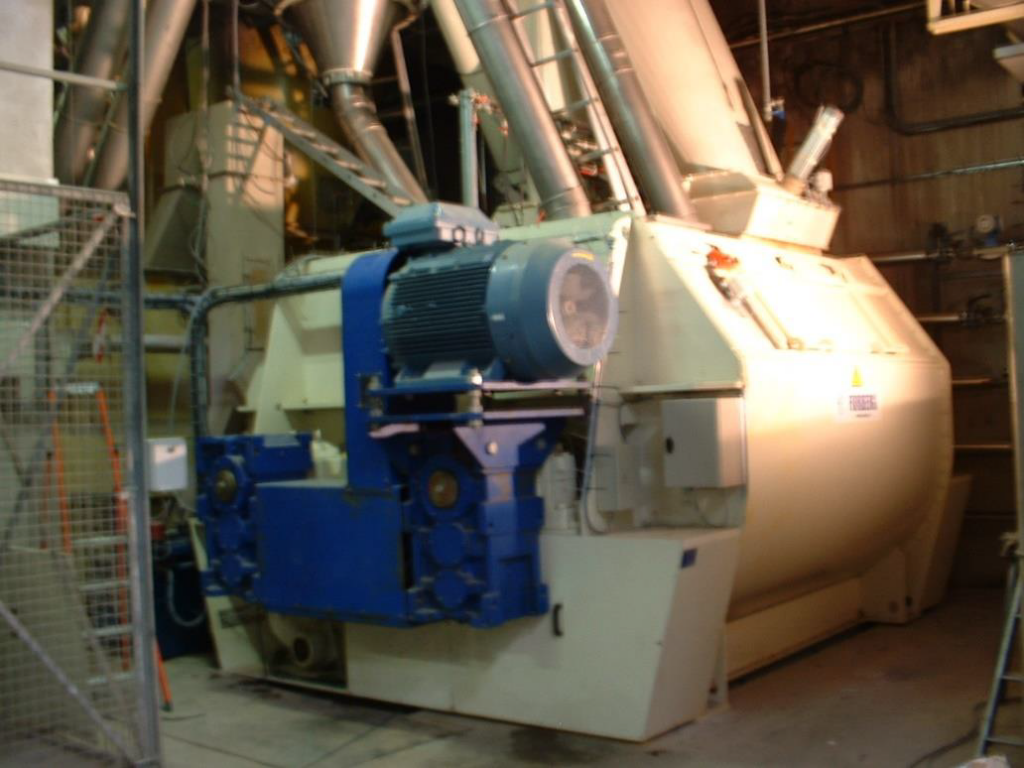

Mixer type
ST 8000
Nominal Capacity : 8,000L
Minimum Capacity :
Without Liquid addition (NC x 40%): 3,200Litres
At : 0,52 kg/dm3 Bulk density : 1,664 kg
Without Liquid addition (NC x 70%) : 5,600Litres
At : 0,52 kg/dm3 Bulk density : 2,912 kg
Maximum Capacity
With or Without Liquid addition (NC x 130%): 10,400Liters
At : 0,52 kg/dm3 Bulk density : 5,408 kg
Refilling level :
At unit batch size: 5000 kg = 9615LL :
9615 L /8000 L = 120.18%
Technical Description:
Unit batch size : 5000 kg
Mixer type : ST 8000
Material Option Mild Steel : Mild steel ST 37-2
Internal finishing – mild steel : Primed and oiled
External finishing – mild steel : Primed and oiled with RAL 1013
Material Option Stainless Steel : Stainless Steel 304
Internal finishing – stainless steel : Continuous welding – rubbed
External finishing – stainless steel : Primed and oiled

Counter wise rotating shafts, : 2
Fitted with :
Angled paddles 45°: 2 x 12
Angled paddles 15° : 2 x 2
Mixer body : 1
top cover including 2 refilling inlets + one vent socket + spraying nozzles and supports : 1
Liquid addition : 3 x 4 flat spray type nozzles.
Individual Nozzle support easy removable from outside, including positioning securing devices
Side inspection door with safety switch and gas cylinders : 2
